sean mccabe Posted July 30, 2018 Report Share Posted July 30, 2018 so i want to get into editing trucks but how do i modify them in zmodeler3 i imported the truck i want to modify and i want to extend it (cab and rear) but i cant figure out how can anybody help thanks Quote Link to comment Share on other sites More sharing options...
itchboy Posted July 30, 2018 Report Share Posted July 30, 2018 I'm using Zmod2 but the steps are more or less the same. Go into vertice editing mode, and select the vertices (red dots) you wish to extend. Make sure you are in "selected mode" so that you can move multiple verts at the same time. Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted July 31, 2018 Author Report Share Posted July 31, 2018 ok ill try Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted July 31, 2018 Author Report Share Posted July 31, 2018 @itchboy once i make the edits do i just export it back into the folder i got it from Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted July 31, 2018 Author Report Share Posted July 31, 2018 or should i just save it as a v3o file @itchboy Quote Link to comment Share on other sites More sharing options...
itchboy Posted August 1, 2018 Report Share Posted August 1, 2018 Save it as a z3d file in case you have second thoughts about hte model. Then export it as a v3o file once you're ready to put it ingame. Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted August 1, 2018 Author Report Share Posted August 1, 2018 ok its in the mod but the texture is screwed up can i fix the texture in zmodeler @itchboy Quote Link to comment Share on other sites More sharing options...

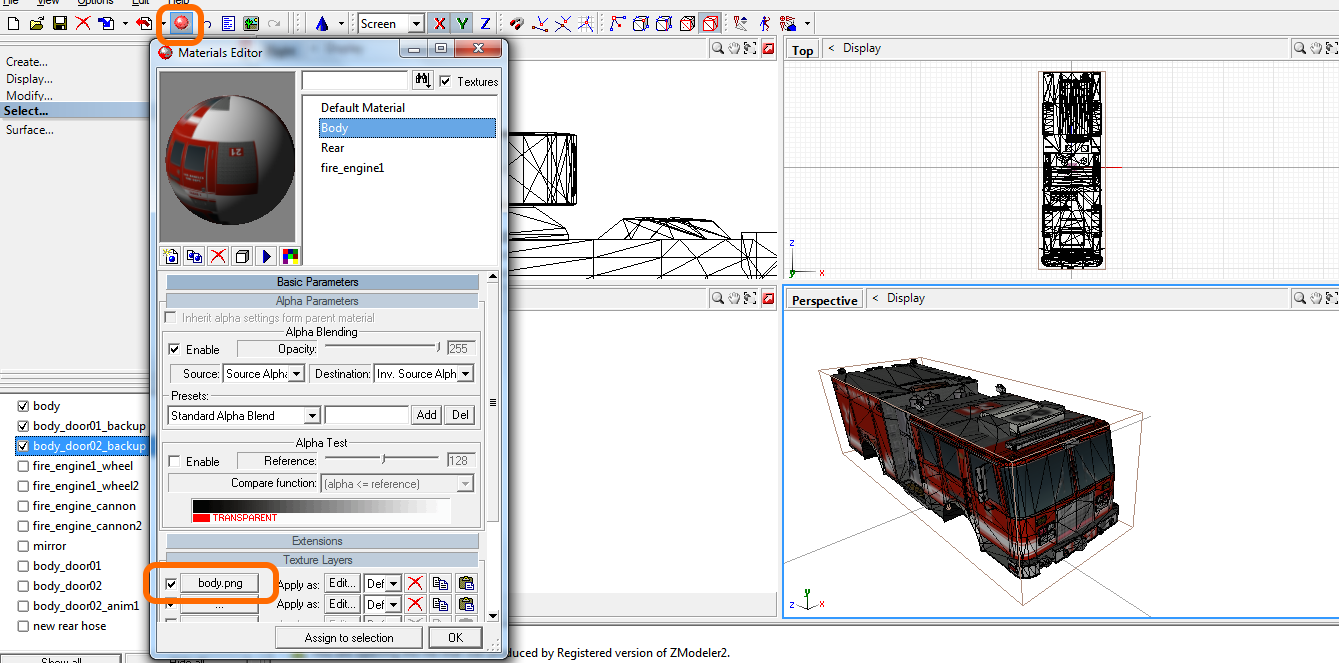

itchboy Posted August 2, 2018 Report Share Posted August 2, 2018 How is it screwed up? Are you getting the white model? Make sure your materials in Zmod are assigned to textures. Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted August 2, 2018 Author Report Share Posted August 2, 2018 @itchboy i extended the cab on a truck and it pulled the texture and the part i extended doesnt show up in the texture file Quote Link to comment Share on other sites More sharing options...

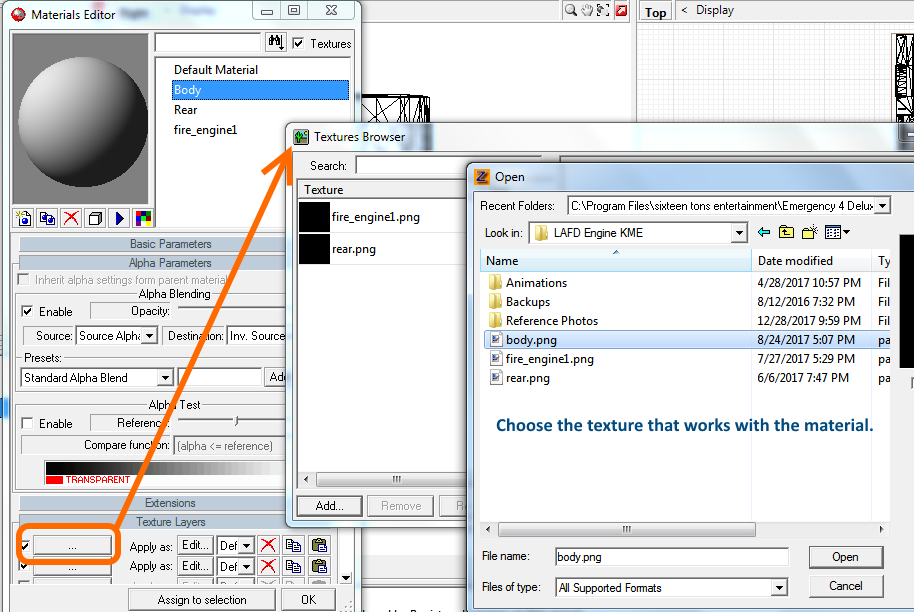

itchboy Posted August 2, 2018 Report Share Posted August 2, 2018 Make sure the materials have textures assigned to them. If they have no textures, then you need to choose the ones that previously came on the model. Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted August 2, 2018 Author Report Share Posted August 2, 2018 @itchboy can i texture in zmodeler? Quote Link to comment Share on other sites More sharing options...
itchboy Posted August 2, 2018 Report Share Posted August 2, 2018 No, you need to create textures using any of the following: - Paint.net - GIMP - Photoshop (costs money) - Paint Shop Pro (costs money) Quote Link to comment Share on other sites More sharing options...
sean mccabe Posted August 2, 2018 Author Report Share Posted August 2, 2018 @itchboy i have paint.net but it shows the model from before i extended the cab can i update the texture file? Quote Link to comment Share on other sites More sharing options...
itchboy Posted August 2, 2018 Report Share Posted August 2, 2018 You can update the texture file by taking a taking a picture of the model and UV mapping it to that image. Then you would make the texture after the UV map job is done. http://www.emergency-planet.com/topic/20856-tutorialhow-to-template-and-uv-map-tutorial/ Quote Link to comment Share on other sites More sharing options...
